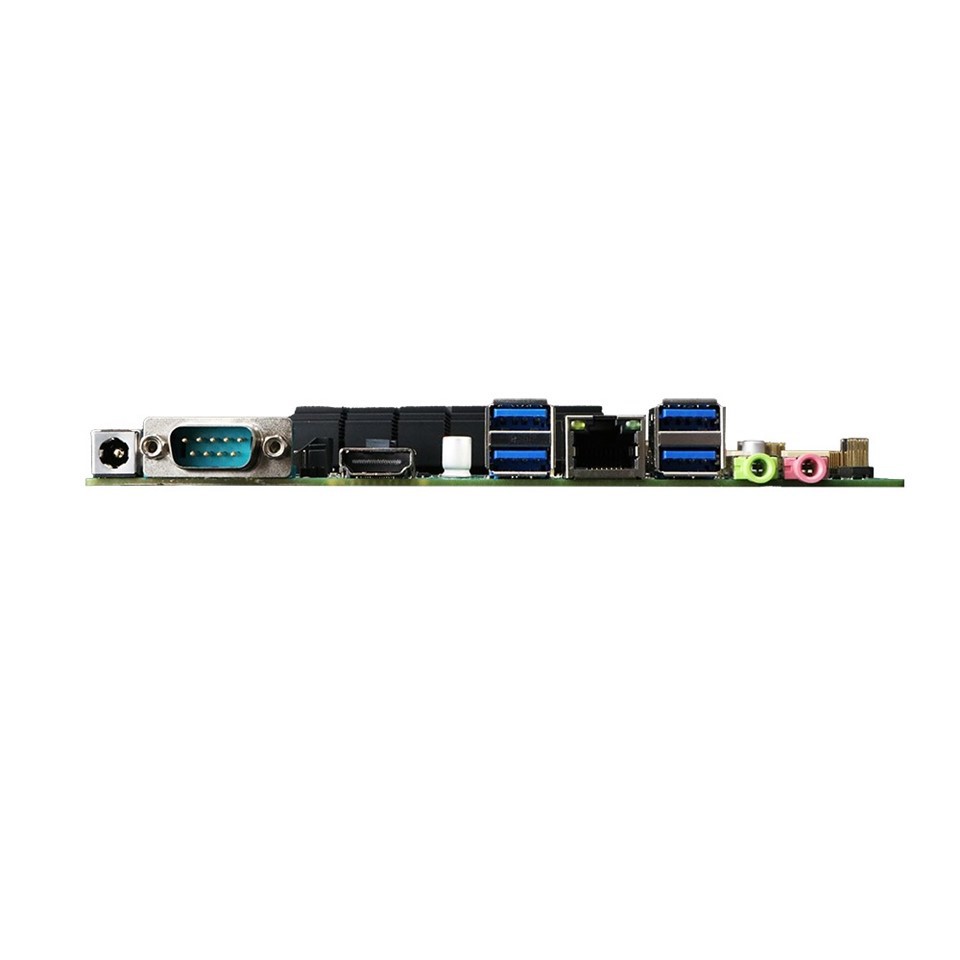

HM-N5095D16-UHL

◇ Adopte Intel® Jasper Lake processeur
◇ Intel® UHD Graphics
◇ 1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◇ VGA, LVDS, HDMI sipòte trip ekspozisyon
◇ 4 ×USB3.0, 6 ×USB2.0
◇ 6 ×COM, 1 ×LPT, 1 ×PS/2
◇ 1 × RJ45 LAN (RTL8111H PCIe otobis rezo kat chip), 1 × Mini-PCIe
◇ 1 × MSATA, 1 × SATA
◇ Sipòte gadyen, reveye rezo ak bòt san disk.
◇ Apwopriye pou Yo Vann an Detay, oto-sèvis, tout-an-yon machin ak endistri kontwòl endistriyèl

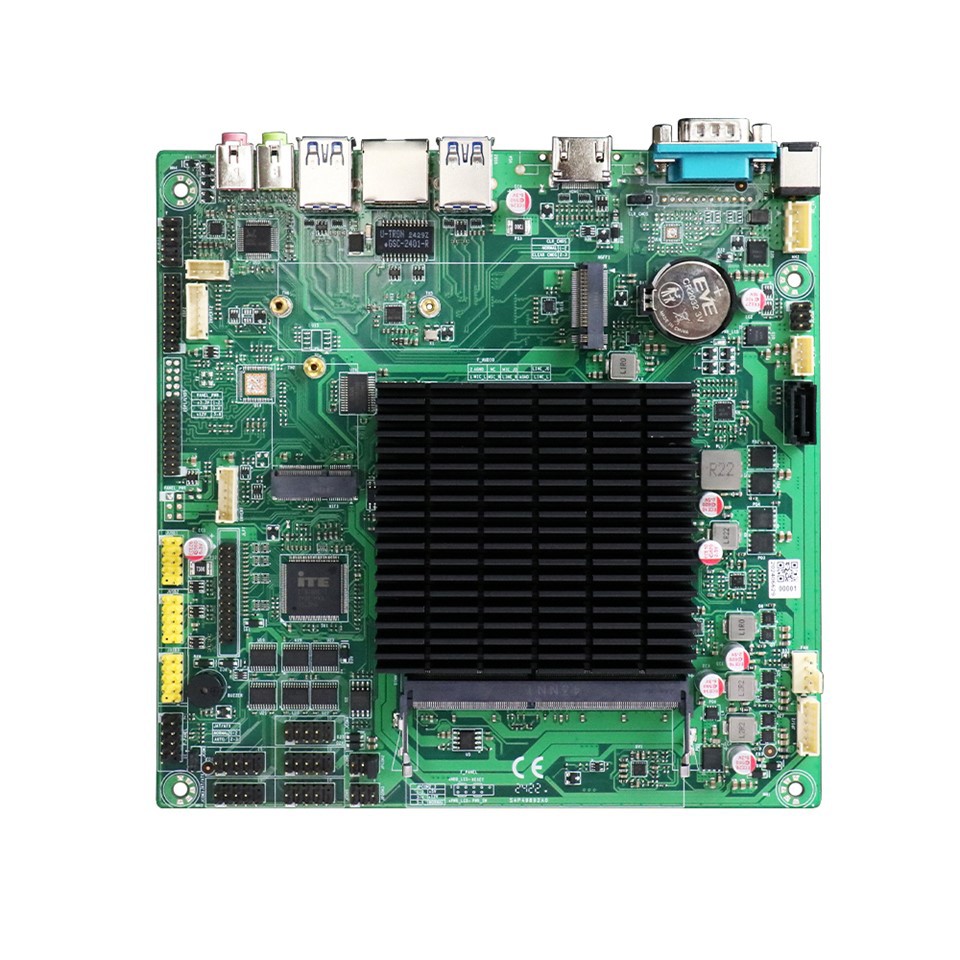

HM-N5095D16-UHL

Se yon Plak Mè Mini Itx gwosè 170x170mm, se pi piti platfòm X86 natif natal nan mond lan.

◆Adopte processeur Intel® Jasper Lake
◆ Grafik Intel® UHD
◆1 × DDR4 2933MHz SO-DIMM Ram, max 16GB
◆VGA, LVDS, HDMI sipòte trip ekspozisyon
◆4 ×USB3.0, 6 ×USB2.0
◆6 ×COM, 1 ×LPT, 1 ×PS/2
◆1 × RJ45 LAN (RTL8111H PCIe otobis rezo kat chip), 1 × Mini-PCIe
◆1 × MSATA, 1 ×SATA
◆Sipòte gadyen, reveye rezo ak bòt san disk.
◆Suitable pou Yo Vann an Detay, oto-sèvis, tout-an-yon machin ak endistri kontwòl endistriyèl

HM-N5095D16-Paramèt pwodwi UHL

CPU	Intel® Celeron® N{{0}}C/4T 2.0GHz(Eklatman 2.9GHz) 4M
memwa	1x DDR4 SO-DIMM 2933MHz Single Channel, Max 16GB
Grafik	Intel® UHD Graphics
VGA	1 × DB15 (Fi twou) Port, 1 × Wafer
H-D-M-I	1 × Port
EDP1/LVDS	1 × Header (LVDS)
Multi Display	Ekspozisyon Triple
Depo	1 × SATA, 1 × MSATA
COM	6 × Port, COM2 sipò RS232/RS485, COM2 & COM3 sipò RI/5V/12V si ou vle
Espas ekspansyon	1 × Mini-PCIe, sipòte WIFI/BT 3G/4G
Deyè IO	1 × DC Jack 1 ×H-D-M-I 1 × VGA 4 × USB3.0 1 × RJ45 1000M LAN( RTL8111H) 1 × Liy-soti, 1 × Mik-nan
Entèn Konektè	1 × LVDS, 1 × JVGA 1 × Mini-PCIe, 1 × SIM 1 × F_Odyo ,1 ×JSPK 6 ×JCOM 1 ×JPS/2 ,1 ×JLPT 3 × JUSB, dilatabl 6 × USB2.0 1 × SATA, 1 × MSATA 1 × F_PANNEL ,1 ×JCASH 1 ×CPU_FAN,1 ×SYS_FAN 1 × SATA_PWR ,1 × ENVESTI
Dimansyon	170 × 170mm
PWR Antre	DC 12V
Operasyon	0~60 degre, 10% ~ 90%RH, san kondansasyon
Depo	-25~75 degre, 5% ~ 95%RH, san kondansasyon
