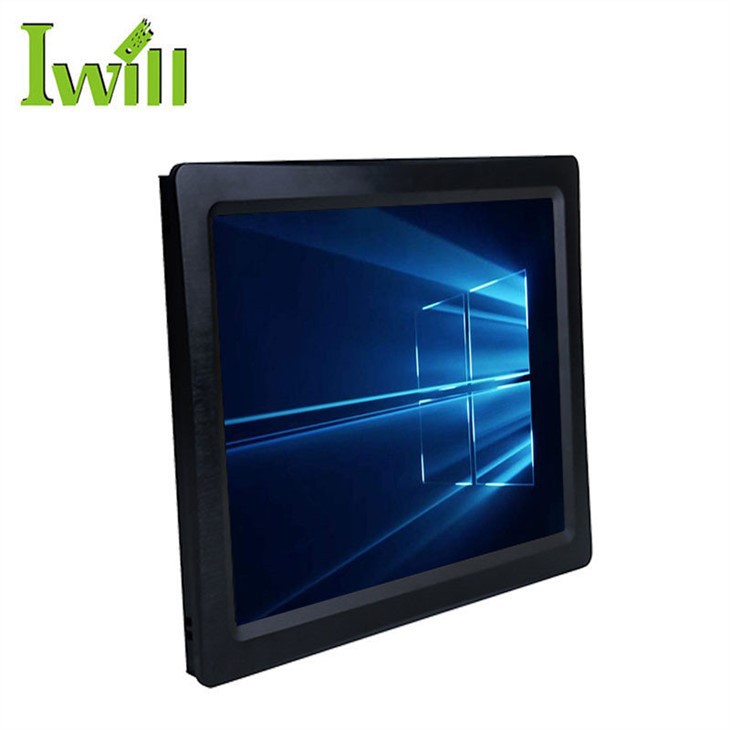

15 pous J1900 I5 Fanless Panel PC

Modèl

ITPC-A150 CT

Koulè

Nwa (Nenpòt koulè ka Customized)

Materyèl

Aliminyòm PC ka

Processeur

Abò Intel Celeron J1900 (kwadwilatè nwayo kwadwilatè anfile, 1.99Ghz, 2MB Cache)

Abò Intel Nwayo i5 4210U (Doub Nwayo kwadwilatè anfile, 1.7Ghz, Max. Turbo ranfòse a 2.7Ghz, 3MB Cache)

Abò Intel Nwayo i5 6360U (Doub Nwayo kwadwilatè anfile, 2.0Ghz, Max. Turbo ranfòse 3.1Ghz, 4MB Cache)

Chipset

Intel CPU entegre chip

Memwa

J1900 vèsyon ak i5-4210U vèsyon: Sipò pou 1 * DDR3L 1333/1600 RAM plas, Max sipò 8GB

i5-6360U: Sipò pou 2 * DDR3L 1333/1600 RAM plas, Max sipò 16GB

BIOS

64Mb Flash ROM

Montre Chip

J1900: entegre Integrated Intel HD Graphics

i5-4210U: Entegre Intel HD Graphics 4400

i5-6360U: entegre Integrated Intel® Iris® Graphics 540

Montre Port

1 * VGA, 1 * HDMI, 1 * LVDS; (Sipò senkronik ak asenkron doub ekspozisyon)

Depo

Sipò pou 1 * MSATA, 1 * 2.5" HDD

Ekspansyon

Sipò pou 1 * Mini PCIE plas, (WIFI / Bluetooth / 3G / 4G Si ou vle, entegre 1 * SIM plas)

I/O

1 * VGA, 1 * HDMI, 2 * RS232 COM 【6 * COM Si ou vle (COM3 RS232 / RS422 / RS485 Si ou vle)

1 * 1000M LAN 【2 * LAN Si ou vle】, 1 * DC, 1 * 3Pin Connector pouvwa, 1 * Mic, 1 * Liy Out

2 * USB3.0, 2 * USB2.0 version J1900 vèsyon se ak 1 * USB3.0, 3 * USB2.0】

LCD

Gwosè: 15 pous TFT-LCD

Pwopòsyon: 4: 3; Rezolisyon: 1024 * 768

Luminozite: 300 CD / m²; Wè Angle: Full Angle

Ekran taktil

Kapasitif kalite milti ekran manyen, Tan lavi: plis pase 50000 Thousand Times

Oratè

2 * 8-ohm 2-watt oratè

Ekipman pou pouvwa

DC 12V (DC 9 ～ 36V Antre Si ou vle)

Travay tanp

0 ℃ + +50 ℃ (HDD), -20 ℃ ～ +60 ℃ (SSD), koule lè sifas

Travay Imidite

5% ～ 95% ki pa kondanse

Dimansyon

373 * 298 * 59 mm

Embedded Enstalasyon

363 * 288 mm

Pwa

5.0 kg

Aplikasyon

Otomatik endistriyèl, medikal, transpò lojistik, depo, edikasyon elektwonik ak lòt jaden
