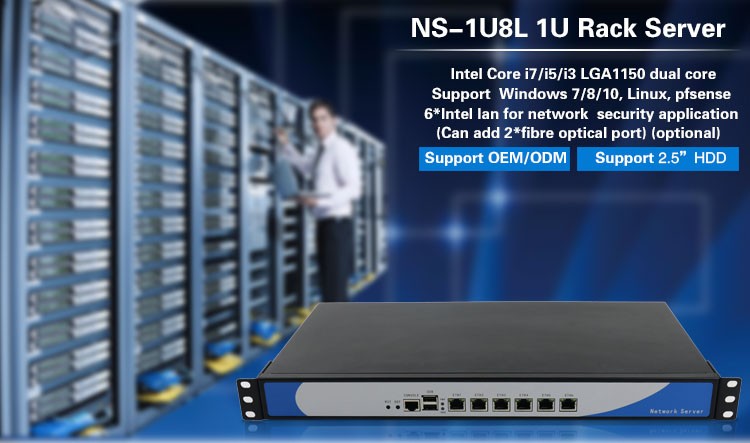

MINI PC Firewall Fanless Network Server ak 6 * Lan Port VPN Firewall PFsense Computer
1) Inter core i3 i5 i7 LGA1155 processeur doub nwayo ak intel B75 chipset
2) 1 * VGA + 2 * USB 2.0 + 1 * switch pouvwa + 6 * Intel LAN(Ka ajoute 2 * pò fib optik)
3)AMI 64MB Flash ROM.sipòRPL/PXEbòt san disk,wake on lan,bòt elektrisite, WDT
4)Ka bon kalite aliminyòm pi bon kalite
5) 1 * MSATA, 1 * 2.5'' SSD/HDD, 1 * mini-PCIE, sipò wifi
6) 6*Intel 82574L 1000M lankat, sipò wake on lan
7)AC 100V - 240V ekipman pou pouvwa;
8)Aplike nanFirewall, VPN, sèvè rezo, sekirite rezo, routeur elatriye.

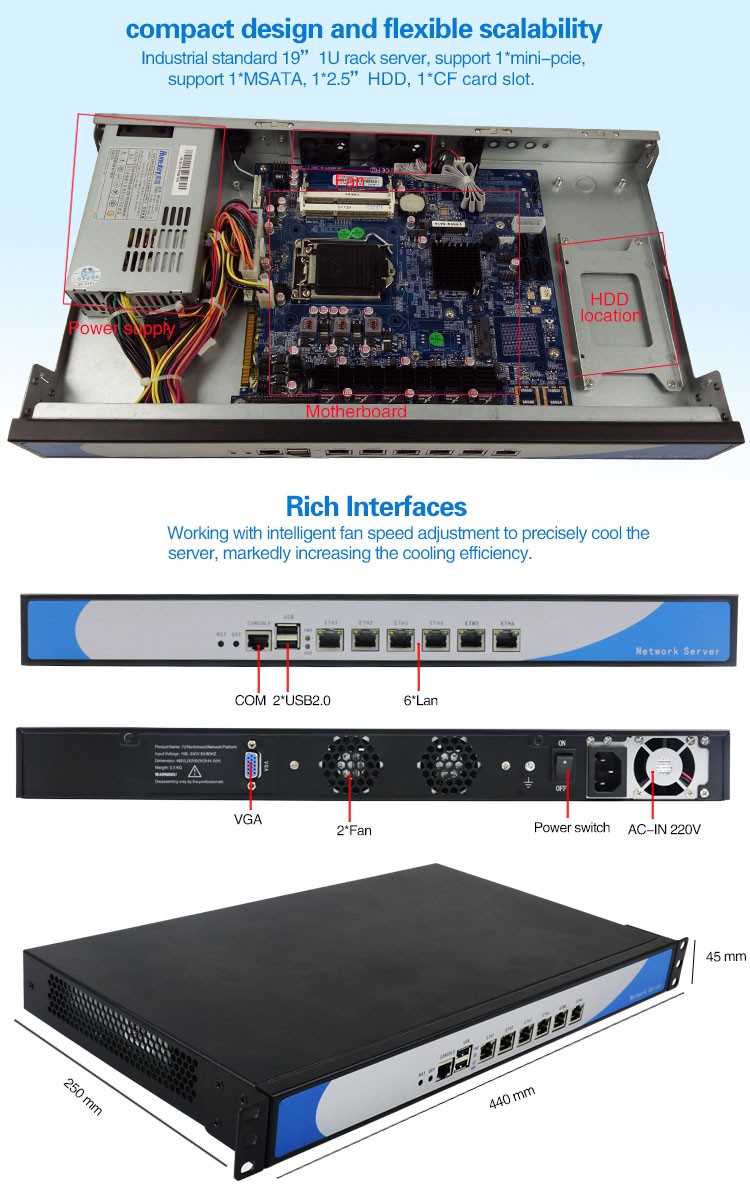

Spesifikasyon | |||
Modèl | NS-1U8L(B75) | ||
CaseColor | Nwa (koulè ka Customized) | ||
Materyèl | Bon kalite aliminyòm pi | ||

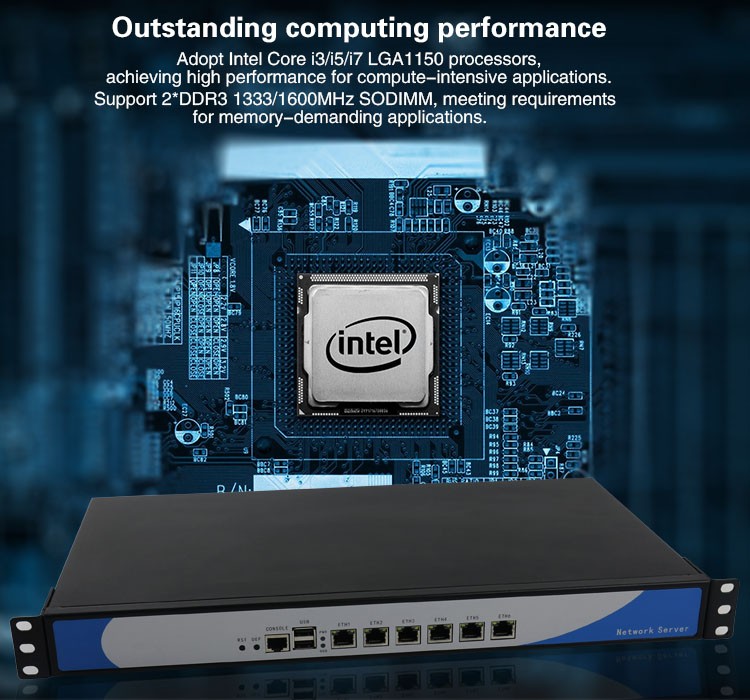

CPU | Intel Core i3 i5 i7 LGA1155 processeur doub nwayo | ||
Chipset | Adopte Intel B75 chipset | ||
Mainboard | 170 * 170mm mini ITX mainboard | ||
RAM | 2 * SO-DIMM DDR3, sipò max 16G | ||
Depo | 1 * MSATA, 1 * 2.5'' HDD, 1 * CF kat emplacement | ||
Odyo | N/A | ||
DisplayInterface | 1 * VGA | ||
Ekspozisyon | Entegre Intel HD Graphic kat, sipò 1 * VGA | ||
I/O | 2 * USB 2.0 | ||
1 * VGA | |||
1 * HDD dirije | |||
6*Intel Lan | |||
1 * pouvwa dirije | |||
1 * Chanjman pouvwa | |||
1 * AC 220V D ' | |||
NetworkCard | 6 * Intel 82574L 1000M lan, sipò reveye sou lan | ||
Ekspansyon | 1 * mini-PCIE, sipòte Wifi | ||
WatchDogTimer | Sipò | ||
Ekipman pou pouvwa | AC 100V ~ 240V ekipman pou pouvwa | ||
Operating System | Windows 7/8/10, Linux, Pfsense | ||
BIOS | AMI 64M DPI Flash ROM | ||
TravayTanperati | -10°C-60°C | ||
TravayImidite | 0% - 95% imidite relatif, ki pa kondanse | ||
Gwosè | 440 * 250 * 45 mm (L * W * H); | ||
Pwa | 8kg; | ||
1. Tan livrezon:1 ~ 3 jou pou yon echantiyon, 15 jou travay pou yon gwo kantite.
2.Fason anbalaj:Chak PC pou yon bwat net;
3. Fason transpò:Pou ti kantite lajan, nou konseye kliyan nou yo pran DHL, Fedex, UPS.
Pou yon gwo kantite, nou ka sipòte bato pa lè oswa pa lanmè.
