I3 I5 I7 Endistriyèl PC ak 4 psi

◇ Karakteristik:
◇ Creole 4U etajè mòn, High-Grade plenn estrikti asye galvanised plak;

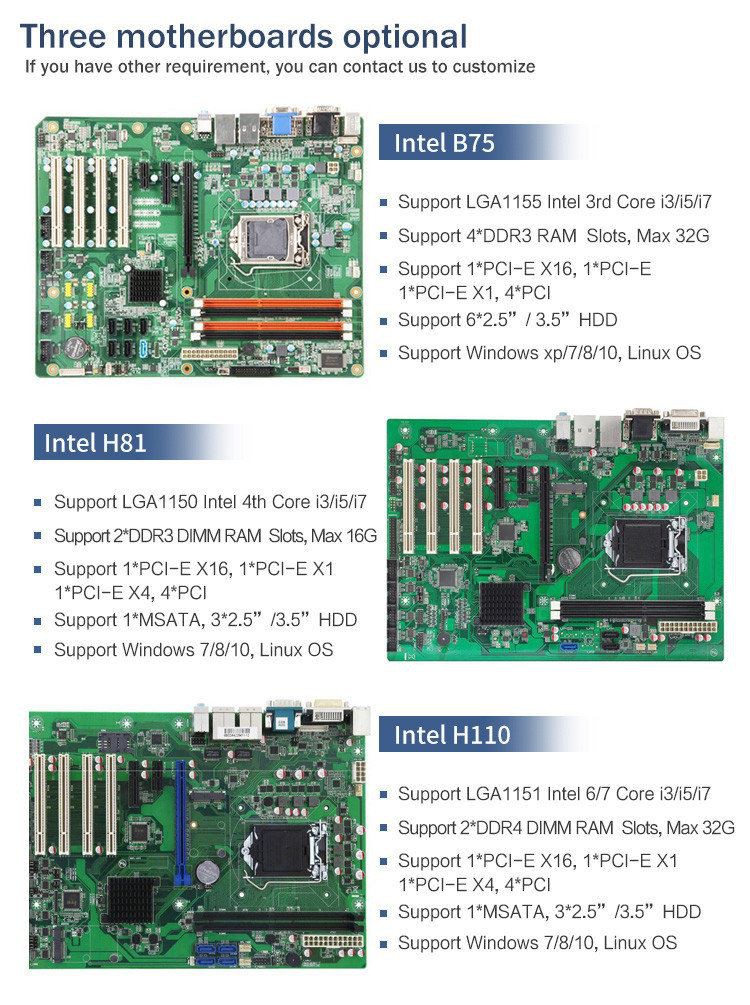

◇ Abò chipset Intel H110;
◇ Sipò pou Intel 6th oswa 7th Generation Core i3 oswa i5 oswa i7 LGA1151;
◇ Maks. Sipò pou 2 * DDR4 DIMM, 32G;
◇ Sipò pou 1 * MSATA SSD, 3 * 2.5 "oswa 3.5" HDD;
◇ Sipò pou 6 * COM, 2 * COM RS232 oswa 485 si ou vle;
◇ 1 * PCI-E X16, 1 * PCI-E X1;
◇ 1 * PCI-E X4, 4 * PCI;
◇ Aplike eksplwatasyon:

Voye rechèch

Telechaje

4U Rackmount sèvè H110 Nwayo I3 I5 I7 CPU endistriyèl PC

4u rack server 1

Espesifikasyon
Modèl	ZPC-620 (H110)
Koulè	Blan (nenpòt koulè ka Customized)
Materyèl	Segondè pa gen okenn fèy fèy galvanised
Processeur	Intel Nwayo i3 6100 (doub nwayo, 4 fil, 3.7 GHz)
	Intel Nwayo i5 6500 (kwadwilatè nwayo, 4 fil, 3.2 GHz, Turbo ranfòse 3.6 GHz)
	Intel Nwayo i7 6700 (kwadwilatè nwayo, 8 fil, 3.4 GHz, turbo ranfòse 4.0 GHz)
Estrikti CPU	Intel H110
RAM	2 * DDR4 2133/2400 DIMM, Max: 32GB
BIOS	AMI UEFI byografi
Montre Chip	Entegre Intel HD Graphics 530
Montre Port	1 * VGA, 1 * DVI-D, 1 * HDMI (senkronik ak asenkron doub ekspozisyon)
Devan I / O	2 * USB2.0, 2 * ki ap dirije, 1 * pouvwa switch, 1 * Reyajiste

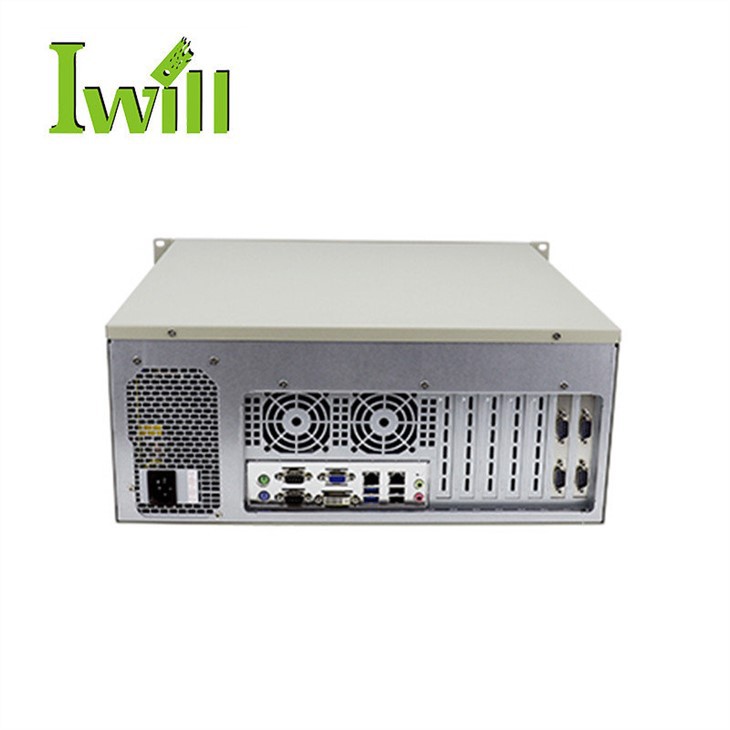

Dèyè I / O	4 * USB3.0, 2 * Intel 1000 LAN, 1 * VGA, 1 * DVI-D, 1 * HDMI 1 * PS / 2, 3 * Audio, 6 * COM (COM3, 4 * RS232 / 485 si ou vle)
Ekspansyon plas	1 * PCIE X16 + 1 * PCIE X1 + 1 * PCIE X4 + 4 * PCI
Ekspansyon plas	1 * MINI PCIE (Sipò MSATA)
Pò Ekspansyon	GPIO, LPT, 1 * USB2.0 Si ou vle
LAN	1 * Intel i211-AT, 1 * Intel i219-LM
Depo	1 * MSATA SSD, 3 * 2.5" /3.5" HDD
Ekipman pou pouvwa	AC 180 ～ 264 V (50 ～ 60Hz), 300W Rated Power

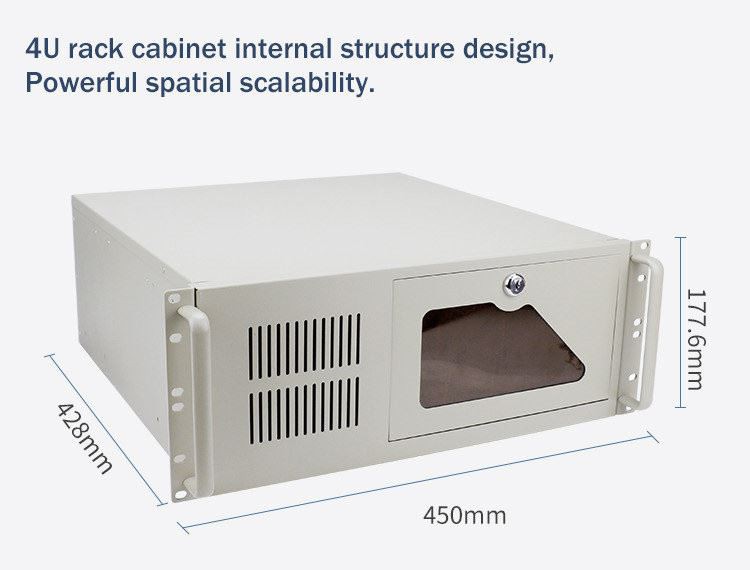

Dimansyon	428 * 450 * 177.6 mm
Pwa	12.5 kg (bare)
Aplikasyon	Aplike nan sèvè Rezo, kyosk, machin Piblisite, Self-sèvis Tèminal, Whiteboard Elektwonik, ATM, POS / Yo Vann an Detay, Rezo.
