4U Rack Mount I3 I5 I7 Rezo sèvè
◇ Intel H110 chipset, sipòte Win XP OS
◇ 2xDDR4 DIMM, Max: 32G
◇Sipòte 1xMSATA SSD, 3x2.5"/3.5" HDD
◇ Sipòte 6 * COM, 2 * COM RS232/485 opsyonèl
◇ 1 * PCIE X16 plis 1x PCIE X1 plis 1x PCIE X4 plis 4xPCI
◇ OS:
Voye rechèch
Product Details of4U Rack Mount I3 I5 I7 Rezo sèvè

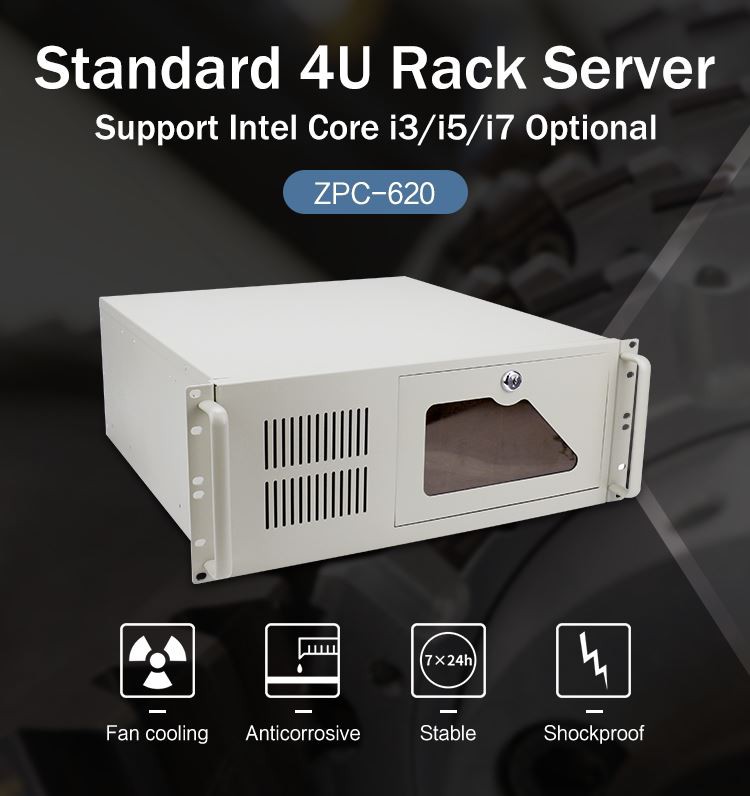

ZPC -620 se estanda 4U Rack Mount firewall sèvè nèrwork, Adopte wo-klas plenn estrikti plak asye galvanised, Abò Intel H110 chipset, Intel 6yèm / 7yèm jenerasyon Nwayo i3/i5/i7 LGA1151prosesè; ekipe ak 2 * DDR4 Max :32G belye mouton, 1 * MSATA SSD, 3 * 2.5 "/3.5" HDD, 6 * COM, 2 * COM RS232/485 opsyonèl, emplacement ekspansyon ak 1 * PCI-E X16,1 * PCI-E X1,1 * PCI -E X4,4 * PCI.Applicated inApplied nan sèvè rezo, KIOSK, machin piblisite, tèminal endepandan sèvis, Whiteboard elektwonik, ATM, POS / Yo Vann an Detay, Networking elatriye.
| Modèl | ZPC-620 |
| Koulè | Blan |
| Processeur | Intel Core i3 6100 (double nwayo, 4 fil, 3.7 GHz) |
| Intel Core i5 6500 (kwadwilatè nwayo, 4 fil, 3.2 GHz, Turbo boost 3.6 GHz) | |
| Intel Core i{{0}} (kwadwilatè nwayo, 8 fil, 3.4 GHz, Turbo boost 4.0 GHz) | |
| CPU Estrikti | Intel H110 |
| RAM | 2 * DDR4 2133/2400 DIMM, Max: 32GB |
| Depo | 1 * MSATA SSD, 3 * 2.5"/3.5" HDD |

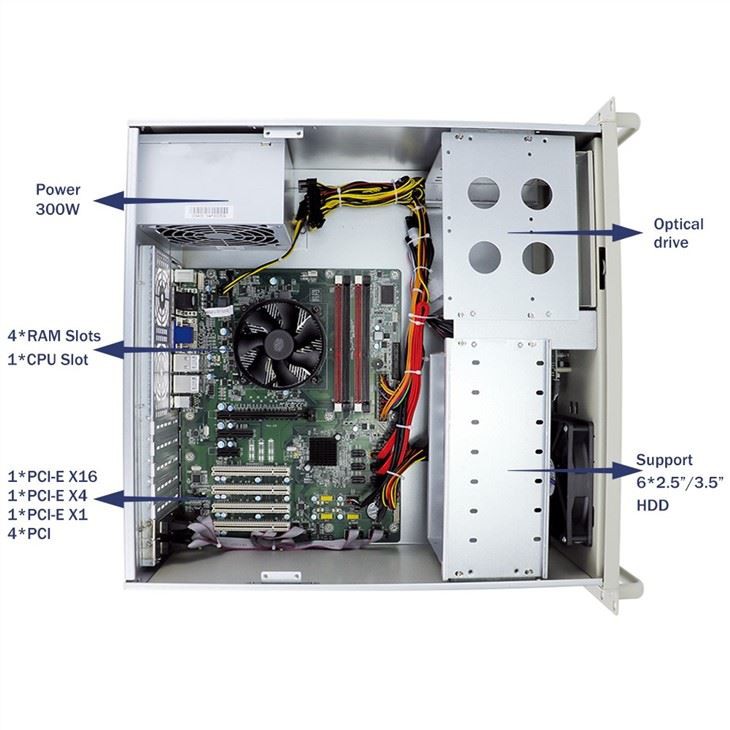

| Espas ekspansyon | 1 * PCIE X16 plis 1 * PCIE X1 plis 1 * PCIE X4 plis 4 * PCI |
| 1 * MINI PCIE (Sipò MSATA) | |
| GPIO,LPT,1*USB2.0 Si ou vle | |
| Lan | 1*Intel i211-AT, 1*Intel i219-LM |
| Ekipman pou pouvwa | AC 180-264 V（50-60Hz）, pouvwa nominale 300W |

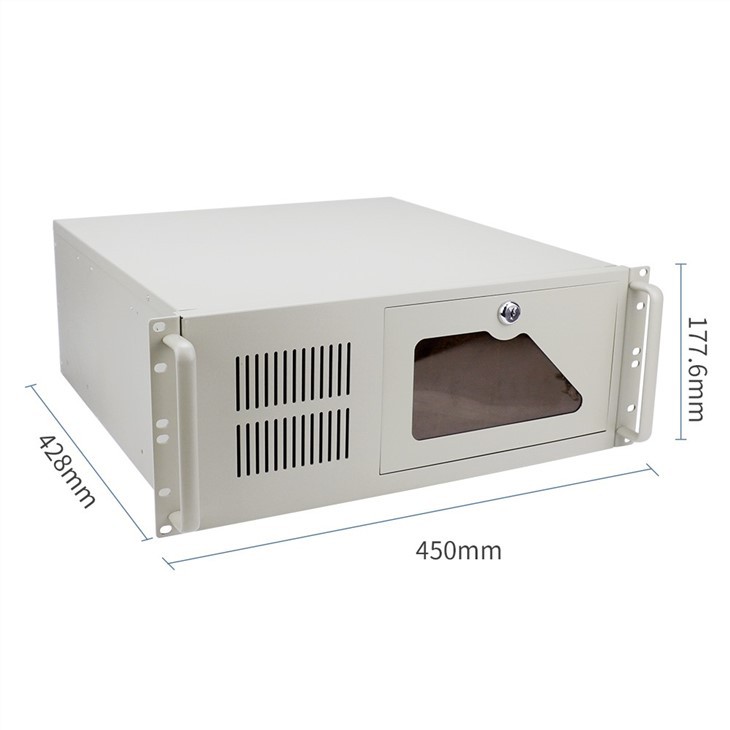

| Dimansyon | 428 * 450 * 177.6 mm |
| Pwa | 12.5 kg (barebone) |
Ki lajè 4U genyen?
Nan A/V, "demi-etajè" anjeneral dekri ekipman ki anfòm nan yon sèten kantite inite etajè, men okipe sèlman mwatye lajè a nan yon etajè 19-pous (9.5 pous oswa 241 mm).
...
Inite etajè, U oswa RU (1U, 2U, 3U, 4U, 5U, 6U ak 7U)
Dimansyon inite (W x H x P)
2U 19" x 3.5" x 17.7" 19" x 3.5" x 20.9" 19" x 3.5" x 24"
3U 17.1" x 5.1" x 25.5"
4U 19" x 7" x 17.8" 19" x 7" x 26.4"
4U rack mount sèvè endistriyèl òdinatè ak Desktop CPU intel i3 i5 i7 sipò 6 3.5 pous HDD ak Win XP, Si w enterese nan plis enfòmasyon sa a, akeyi yo konsilteJessie
