J1900 Fanless Endistriyel PC

Karakteristik:
◇ Tout estrikti aliminyom, konsepsyon fanless;
◇ Sipote Intel Celeron J1900 kwadwilate processeur debaz;
◇ Max. Sipo DDR3L 8G RAM;
◇ Sipo 1 * MSATA plas, 1 * 2.5 "HDD;
◇ Sipo 1 * Mini PCIE plas;
◇ Sipo 6 * COM (COM1, COM2 RS232 oswa 485 Si ou vle);
◇ Sipo EKSPLWATASYON:

Voye rechèch

Telechaje

Fanless Endistriyel Odinate J1900 Kwadwilate Nwayo Processeur mini PC

Fanless mini pc 1

Spesifikasyon
Modèl	IBOX-101 Plus
Koulè	Ajan (koule ka customized)
Materyèl	-Wo kalite tout aliminyom, sifas oksidasyon anodik
Processeur	Bor Intel Celeron J1900 (Kwadwilate debaz kwadwilate threading, 1.99 GHz, TDP: 10W)
RAM	Sipo pou 1 * DDR3L 1333 / 1600MHz SODIMM RAM Plas, Max turbo 8GB
BIEKSPLWATASYON	AMI UEFI BIEKSPLWATASYON
Montre Chip	Entegre Intel HD Graphics
Montre po	1 * HDMI, 1 * bati-an LVDS (sipo synchronous ak asynchrone doub montre)

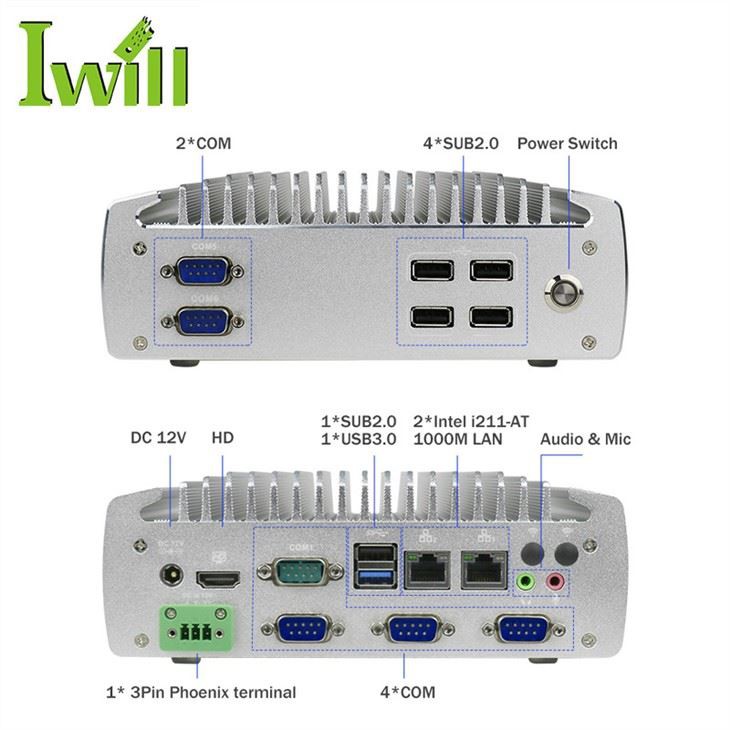

Devan mwen/O	4 * USB 2.0, 2 * COM, 1 * pouvwa chanje

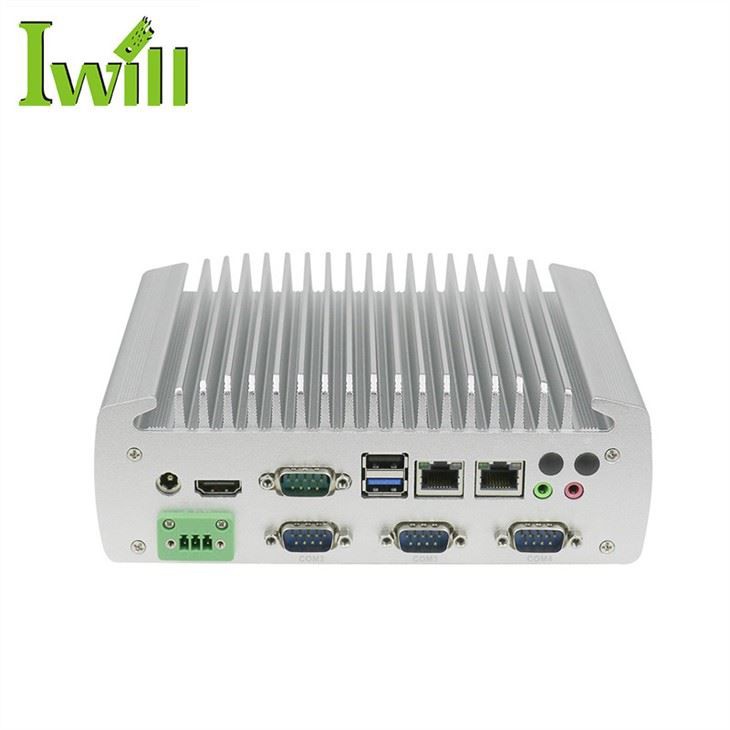

Deye mwen/O	1 * USB 3.0, 1 * USB 2.0, 4 * COM (COM1, COM2 RS232/485 Opsyonel), 1 * 3PIN Phoenix connector
Deye mwen/O	2 * 1000M a, 1 * HDMI, 1 * $12V opinyon, 1 * Mic, 1 * liy soti
Ekspansyon plas	Sipo pou 1 * MINI PCIE plas (sipo MSATA)
Ekspansyon plas	Sipo 1 * MINI PCIE plas (WIFI / 3G / 4G si ou vle), entegre SIM plas
Rezo	2 * Intel i211-nan 1000M a
Depo	Sipo pou 1 * MSATA plas, 1 * 2.5 "HDD
D' Voltaj	Sipo pou fe 12V D'
Lot fonksyon	Auto pouvwa sou le gen elektrisite, tan bot, reveye sou yo, PXE bot, enjistis (0 ~ nivo 255) (vesyon estanda pa mete fonksyon sa yo)
Travay Temp	0 ° C ~ + 50 ° C (komesyal HDD),-20 ° C ~ + 60 ° c (Endistriyel SSD), sifas koule le
Travay imidite	5% ~ 95% ki pa kondanse
Setifika	LIFYE, CCC, FCC klas la, ROHS
Dimansyon	186 * 150 * 66mm 【 pa gen ladan parantez yo 】
Pwa net	1.6 kg 【 pa gen ladan parantez yo 】
Aplikasyon	Endistriyel Automatisation, medikal, transpo lojistik, depo, edikasyon elektwonik elatriye.
